AHE-H / AKQ

Commercial/Air Handing Unit

Ducted type (AHU)
Low Static
(75 Pa External Static)
For Direct Expansion System Ducted Type
Fiberglass casing,
Rotary/Scroll compressor,
R-32
Cooling capacity 30,000 - 60,000 BTU/H

FEATURES
Casing : A sturdy, eletro-zinc coated steels shet cabinet is provided in modern SLIM design. All members of the cabinet are die formed that assures a good dimensional and quality control. Cabinet are finished in HARMONY BEIGE color of ELECTROSTATIC POWER painting process that provides a double protection against rust.

Condensate Removal
 All standard Cooling Coils are condtructed of Aluminum plate fin, mounted on copper tubes which are mechanically bonded for maximum effciency of heat transfer.
Cooling Coil : Drip pan with water repellent type Insulation to insure positive removal of all condensation and prevent condensation on the underside of the drip pan.

Thermostat
1. 2 Speed Motor 2 speeds adjustable wind blow High-Low For Turbo cool or Quiet cool.
2. Turbo Fan Powerful turbo motor delivers coolness to the room quickly yet quietly.

Model AKQ
Casing made from fiberglass, corrosion free.Suitable for durable use especially for seaside or acidic environment. Optional Copper fin and green guard coated fin are available.
1. Auto Restart Air conditioning system turns on automatically after electricity supply returns from a power failure. the system also memorizes every setting before the outage.
2. 3 Minute Time Delay Prevent damage to the compressor fromvoltage sag or power failure.

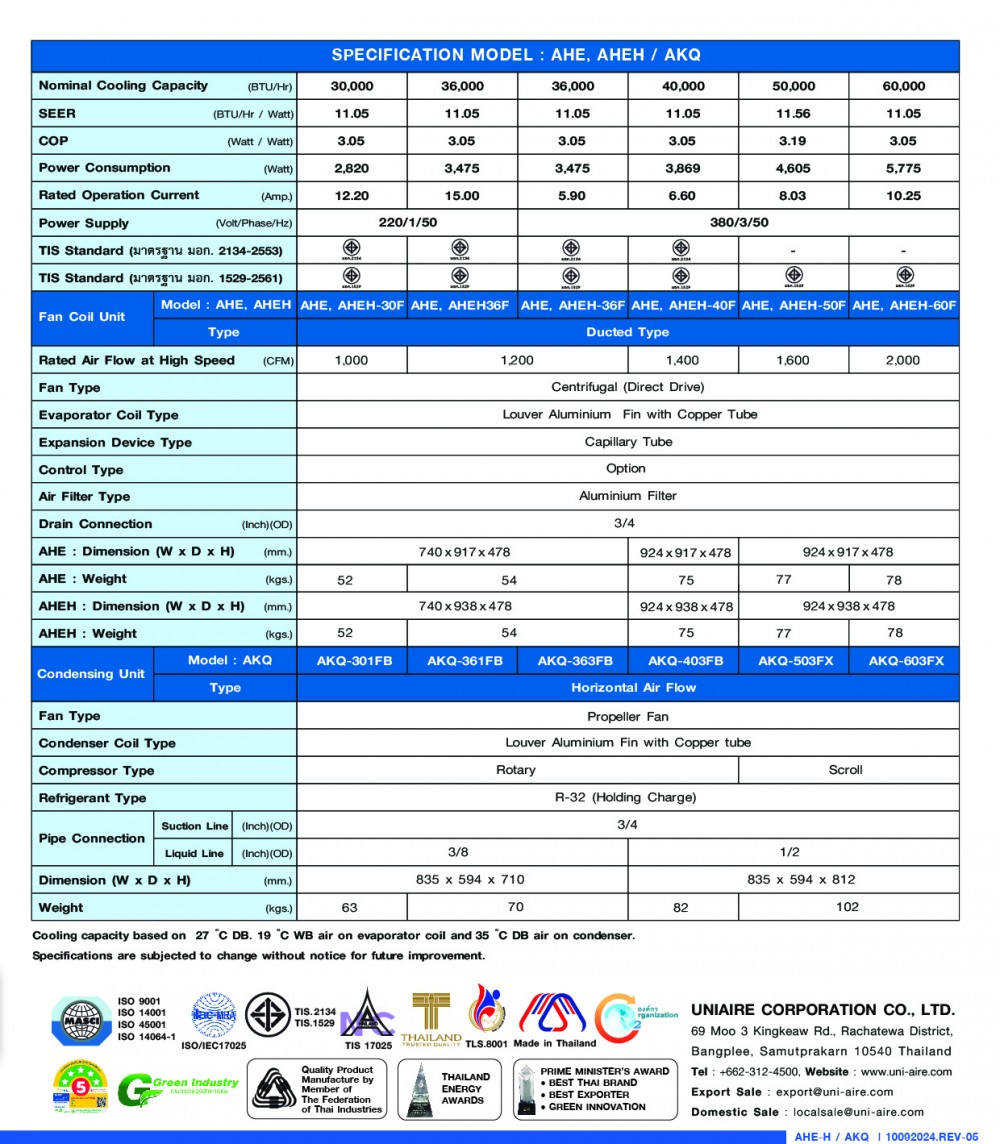

Catalogue Air Handing Unit AHE-H AKQ (Fiberglass Casing) 30000- 60000 BTUH
