New Environmental-friendly R32 refrigerant

• Enhanced cooling capacity

• Fast cooling

• Higher energy saving

• New 2017 EGAT’s Label No.5 standard

• Zero Ozone Depletion Potential (ODP)

• 3 times lower Global Warming Potential (GWP) than R32

Energy saving up to 30% compare to non-inverter system

Fan coil Unit

1. Turbo Fan Powerful turbo motor helps fill the coolness to the room quickly yet quietly.

2. Copper tube Inner groove copper tube increase heat exchanger surface

3. Hydrophilic Coil Evaporator coils use blue fin coating Easilydrainoutwater droplets,reduce smelly odor, reduce mold, save energy, and more durable than normal fins.

4. 4 Directional airflow Intelligent airflow system. Auto swing louver for a better air flow, both vertical and horizontal directions.

4 Directional airflow
Intelligent airflow system. Auto swing louver for a better air flow, both vertical and horizontal directions.

Fan coil unit and supply air grille installation at same level

Fan coil unit and supply air grille installation at different level (by additional flexible duct)

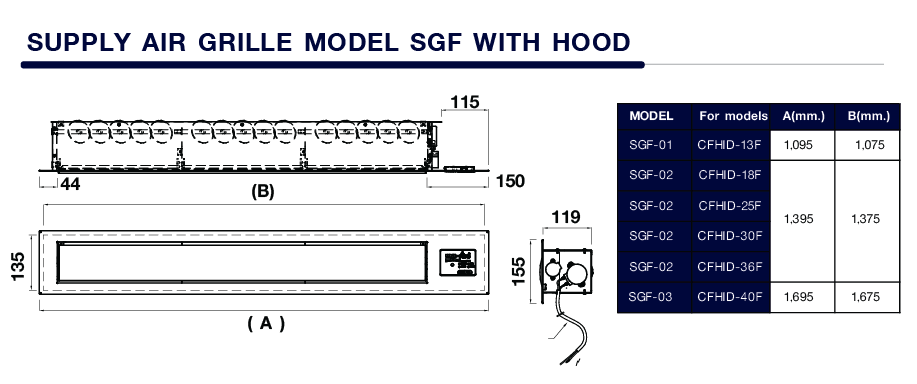

1. Supply air grille model SGF with hood
2. Fan coil unit model CFHV
3. Return plenum

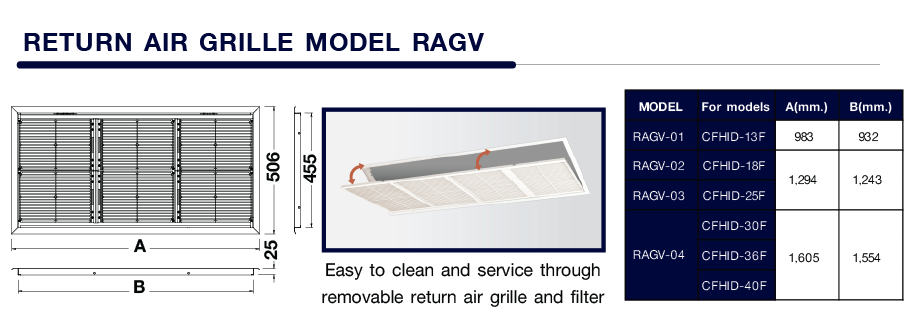

4. Return air grille model RAGV
5. Flexible duct (with instant installation set)

Digital wired thermostat (standard equipment)

1. 4 Speed Motor 4 speeds adjustable wind blow Turbo-High-Medium-Low For Turbo cool or Quiet cool.
2. ECO Mode Power saving by automatically setting temperature at 25 °C
3. Turbo Fan Powerful turbo motor helps fill the coolness to the room quickly yet quietly.
4. Timer On / Off 24-hour timer for turning on or turning off the air conditioning system
5. Sleep Mode Adjust suitable tempuraturefor sleeping time
6. 4 Directional airflow Intelligent airflow system. Auto swing louver for a better air flow, both vertical and horizontal directions.

Wireless digital remote controller (optional)
1. 4 Speed Motor 4 speeds adjustable wind blow Turbo-High-Medium-Low For Turbo cool or Quiet cool.
2. ECO Mode Power saving by automatically setting temperature at 25 °C
3. Turbo Fan Powerful turbo motor helps fill the coolness to the room quickly yet quietly.
4. Timer On / Off 24-hour timer for turning on or turning off the air conditioning system
5. Sleep Mode Adjust suitable tempuraturefor sleeping time
6. 4 Directional airflow Intelligent airflow system. Auto swing louver for a better air flow, both vertical and horizontal directions.

Other features
1. Auto Restart Air conditioning system turns on automatically after electricity supply returns from a power failure. the system also memorizes every setting before the outage.
2. 3 Minute Time Delay Prevent damage to the compressor fromvoltage sag or power failure.

Casing made from high - quality metal sheet, coated with anti - oxidation white powder coated. Durable with great heat transfered performance from advanced aerodynamic fan design. Compact size, easy installation in small space.
