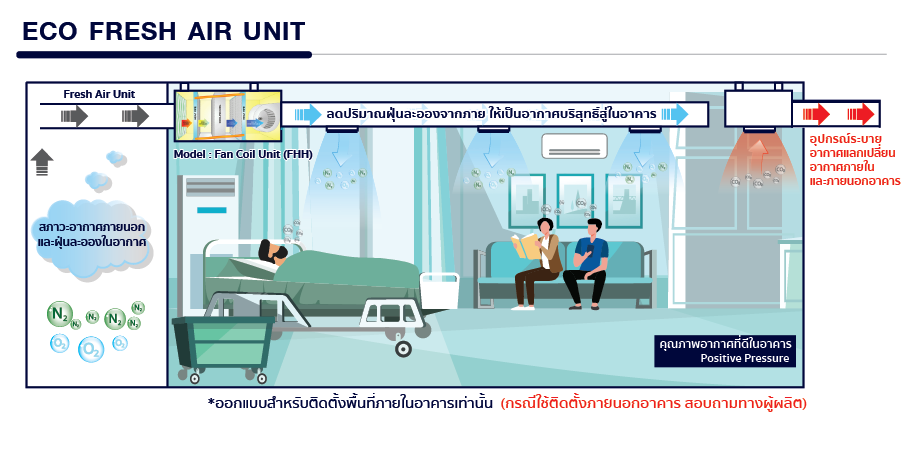

Fresh Air System (Eco Fresh Air Unit)

1. Introduces fresh air into the room by installing the OAU system with a filter to remove dust.

2. Installs a heat pipe with the OAU to control humidity in the air, ensuring cleanliness and energy efficiency for the OAU.

3. The fresh air introduced creates positive pressure in the room, pushing dust out of the space.

4. Reduces carbon dioxide levels within the building.

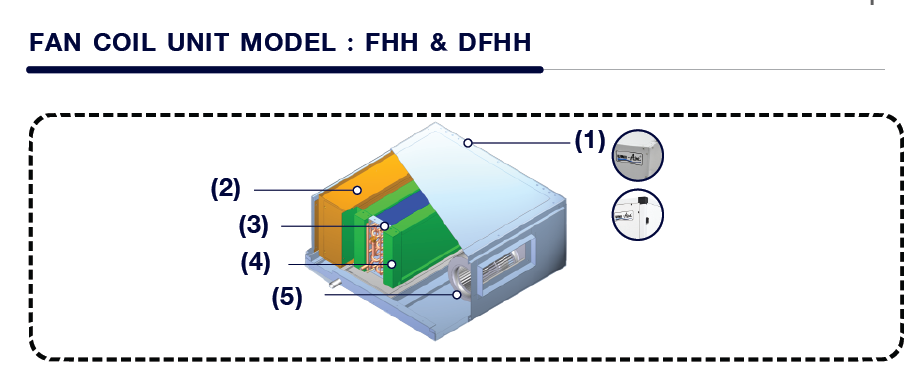

Fan Coil Unit Model : FHH & DFHH
1. Casing (selectable)
• Single Skin specific Model : FHH
• Double Skin specific Model : DFHH
2. Air Filter
3.Cooling Coil
4. Heat pipe
5.Blower Backward Centrifugal

Provides a good and precise response to the operational system with an automatic valve opening and closing system.


• Supports high pressure (External Static Pressure 0.5 in.Wg)

• Can deliver air through ducts over long distances (depending on duct design)

• Aluminium Filter: Provides basic dust filtration and is easy to clean.

• Pre-Filter (Class G4): Efficiently filters dust particles ranging from 3.0 to 10 microns with an average efficiency of 90%.

• Medium Filter (Class F8): Efficiently filters dust particles ranging from 0.3 to 1.0 microns with an average efficiency of 98% (optional).

Wired Digital Remote Control

Displays illuminated digital temperature readings with a modern, aesthetically pleasing design for easy operation. It can receive signals from a wireless remote.

• Power ON/OFF: The POWER button turns the air conditioner on and off.

• Speed Fan: The Speed Fan button controls a high-capacity fan motor with three speed settings (for models 13,000-36,000 BTU/Hr). (Speed adjustment is not available for models 48,000-60,000 BTU/Hr).

• Temp: The Temp button allows you to increase or decrease the temperature, displaying the set temperature on the remote control screen.

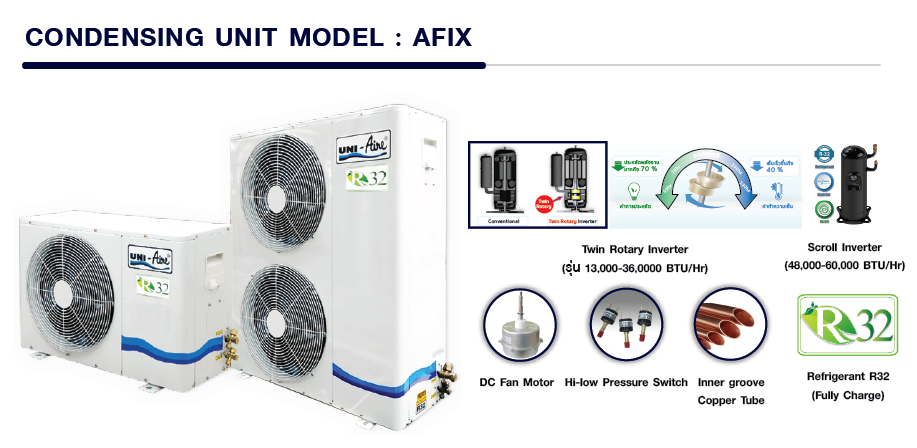

Twin Rotary Inverter (Models 13,000-36,000 BTU/Hr)

• The twin rotary compressor technology allows for faster refrigerant suction and compression.

• It features a wider frequency range of 10Hz - 120Hz, accelerating operation up to 120 Hz, resulting in cooling efficiency that is 40% faster compared to the traditional frequency range of 20Hz-100Hz.

Scroll Inverter (48,000-60,000 BTU/Hr)

• Offers a longer lifespan due to its scroll compression mechanism, which minimizes movement.

• Operates more quietly with a variable speed inverter system that adjusts the operating cycles independently.

• Maintains a stable room temperature.

DC Fan Motor

• Provides a quick response to operational demands.

• Operates more quietly compared to alternating current (AC) motors.

• Demonstrates higher efficiency compared to AC motors.

Hi-low Pressure Switch

• Protects the compressor from damage by monitoring refrigerant pressure, ensuring it stays within set limits.

• Responds effectively and accurately with an automatic valve opening and closing system.

Refrigerant R32 (Fully Charged)

• Contributes less to the greenhouse effect (GWP value of 675).

• Low boiling point enhances cooling efficiency (-52°C).

• Has an ozone depletion potential of 0, making it environmentally friendly (ODP value of 0).

Inner Groove Copper Tube

• The copper tubes are designed with an inner groove to enhance heat exchange efficiency.
