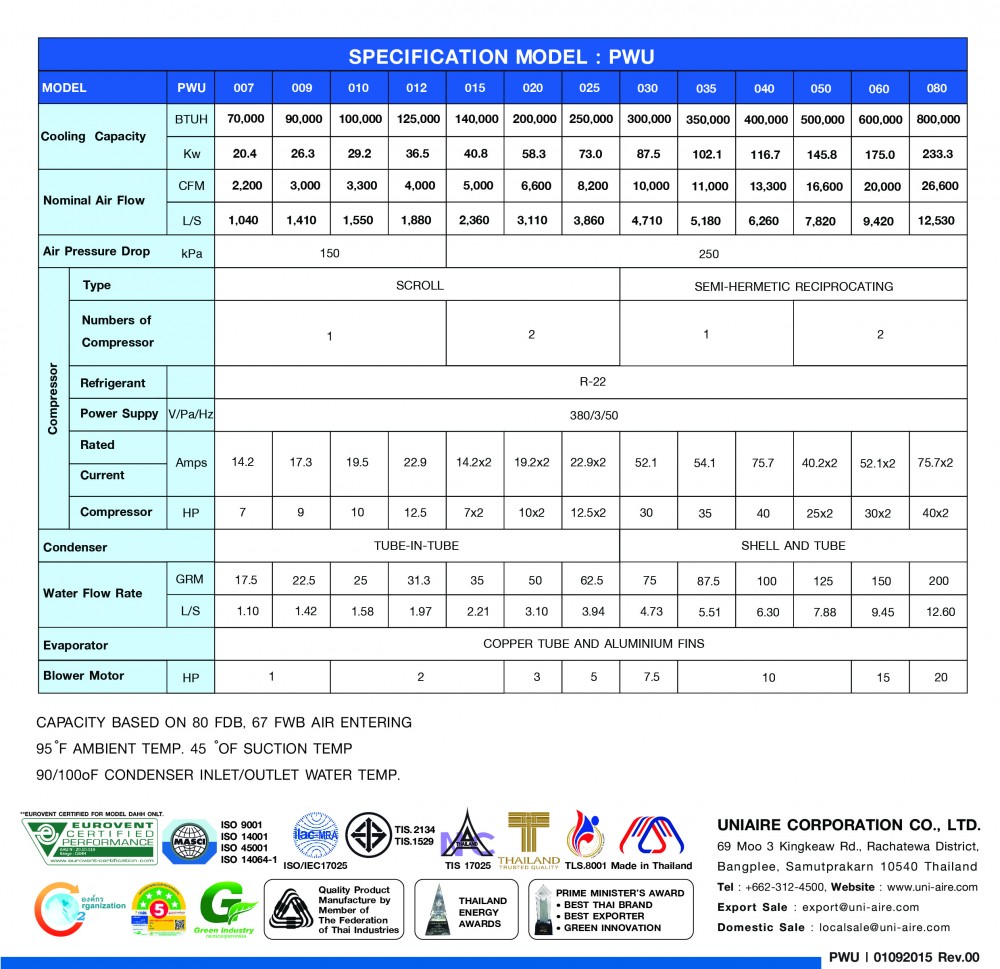

PWU
Commercial/Packaged Water-cooled UnitWater-cooled unit
Semi-hermetic/Scroll compressor
R-22 refrigerant
Cooling capacity 70,000-80,000 BTU/H
(20.4 kw - 233.3 kw)

Features
• High efficiency, refrigerant cooled compressor.
• High efficiency tube-in-tube condenser for unit model PWU 007 to PWU 025 and shell & tube condenser for unit model PWU 030 to PWU 080.
• Electrical supply connections and knockouts provided.
• Lower operation cost. - HP and LP cut-out switches.
• Aluminium Air filters - Electrical panel.
Description
• The PWU units are single package water cooled air conditioners. Wide range of indoor
• The PWU series includes 13 models of cooling system.
• Suitable for vertical mount, indoor installation Air Filters.
• Completed with pipe, wiring and refrigeration charging at the factory.
• Ideal for quick and low cost installation
