UFQ / AKQ

Residential/Universal Type

Floor&Ceiling type
(Fiberglass casing)
R-32 refrigerant
Cooling capacity 12,000-60,000 BTU/H

ตั้งแขวน ที่เหลือ-08


New Environmental-friendly R32 refrigerant
• Enhanced cooling capacity
• Fast cooling
• Higher energy saving
• Zero Ozone Depletion Potential (ODP)
• 3 times lower Global Warming Potential (GWP) than R32


1. Durable material casing made from high - quality metal sheet, coated with anti-oxdation white powder coated
2. Copper tube Inner Groove Coopper Tube increase heat exchanger surface
3. Large Dust Filters Reduce large dust particles from room environment, easy to clean with warm water
4. Hydrophilic Coil Blue f in coated evaporatorcoil provides hydrophobic property for bad odor and mold reducing. Energy saving and last longer than normal fins.
5. Carbon Filter (Option) Filter made from carbon for bad odor elimination


• Manually adjustable air vent in 4 directions left - right & upper – lower
• Deliver cool air in wide area including area below the unit
• Available in f loor mounted  and ceiling mounted in one unit


Digital wired thermostat (standard equipment)
1. 4 Speed Motor 4 speeds adjustable wind blow Turbo-High-Medium-Low For Turbo cool or Quiet cool.
2. ECO Mode Power saving by automatically setting temperature at 25 °C
3. Turbo Fan Powerful turbo motor helps fill the coolness to the room quickly yet quietly.
4. Timer On / Off 24-hour timer for turning on or turning off the air conditioning system
5. Sleep Mode Adjust suitable tempuraturefor sleeping time
6. 4 Directional airf low Manually adjustable air vent in 4 directions left - right & upper – lower (Can not be used)


Wireless digital remote controller (optional)

1. 4 Speed Motor 4 speeds adjustable wind blow Turbo-High-Medium-Low For Turbo cool or Quiet cool.
2. ECO Mode Power saving by automatically setting temperature at 25 °C
3. Turbo Fan Powerful turbo motor helps fill the coolness to the room quickly yet quietly.
4. Timer On / Off 24-hour timer for turning on or turning off the air conditioning system
5. Sleep Mode Adjust suitable tempuraturefor sleeping time

Other features

1. Auto Restart Air conditioning system turns on automatically after electricity supply returns from a power failure. the system also memorizes every setting before the outage.
2. 3 Minute Time Delay Prevent damage to the compressor fromvoltage sag or power failure.

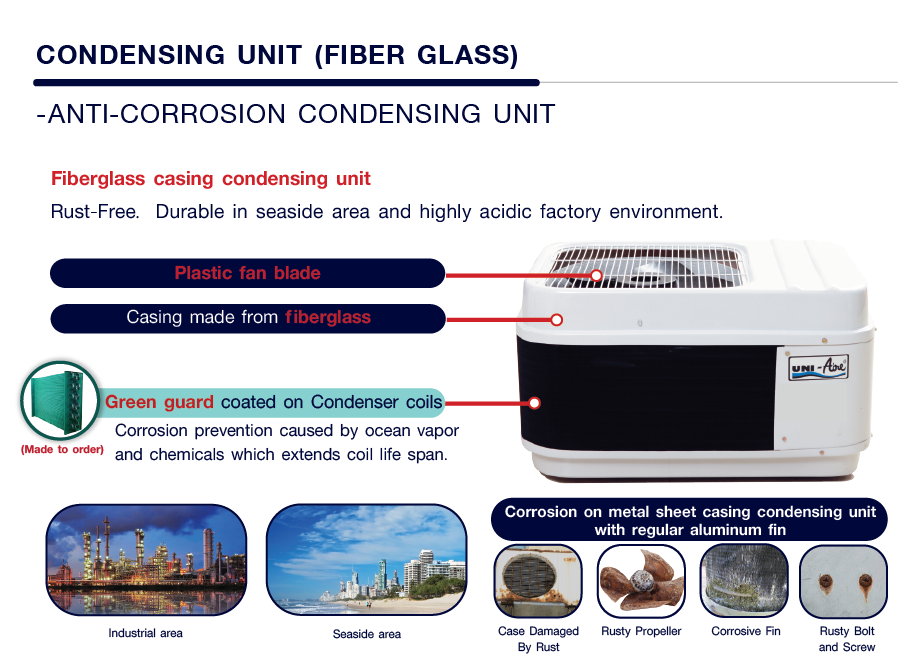

Fiberglass casing condensing unit
Rust - Free. Durable in seaside area and highly acidic factoryenvironment.


ตั้งแขวน ที่เหลือ-14


ตั้งแขวน ที่เหลือ-11

The casing is made from high-quality fiberglass, making it rust-resistant and durable in all weather conditions, especially in coastal areas where corrosion is prevalent. The robust structure lasts for over 5 years and is available with either aluminum or copper fins, depending on suitability.
Vertical heat dissipation reduces wind impact from coastal areas, enhancing heat removal efficiency.
  • Green Guard coating:
    • More resistant to corrosion, extending the lifespan
    • Suitable for coastal areas or environments with high acidity or alkalinity
  • Copper coils
  • Stainless steel screws





ตั้งแขวน ที่เหลือ-13

Compatible with all types of air conditioners:
  • Wall-mounted air conditioners
  • Floor or ceiling-mounted air conditioners
  • Ceiling cassette air conditioners
  • Ducted air conditioning systems
