AHE-H / AKQ
เครื่องปรับอากาศเชิงพาณิชย์/เครื่องปรับอากาศ แบบต่อท่อลมแบบต่อท่อลม (AHU)
ความดันสถิตต่ำ
(ความดันสถิตภายนอก 75 Pa)
คอนเดนซิ่งยูนิต ไฟเบอร์กลาส
คอมเพรสเซอร์แบบโรตารี่/สโครล
น้ำยา R-32
ขนาดความเย็น 30,000 - 60,000 BTU/H
FEATURES Casing : A sturdy, electro-zinc coated steels sheet cabinet is provided in modern SLIM design. All members of the cabinet are die formed that assures a good dimensional and quality control. The Cabinet is finished in HARMONY BEIGE color of electrostatic powder painting process that provides a double protection against rust. Condensate Removal All standard Cooling Coils are condtructed of Aluminum plate fin, mounted on copper tubes which are mechanically bonded for maximum effciency of heat transfer. Cooling Coil : Drip pan with water repellent type Insulation to ensure positive removal of all condensation and prevent condensation on the underside of the drip pan.
Thermostat
1. 2 Speed Motor 2 speeds adjustable wind blow High-Low For Turbo cool or Quiet cool.
2. Turbo Fan Powerful turbo motor delivers coolness to the room quickly yet quietly.
Model AKQ

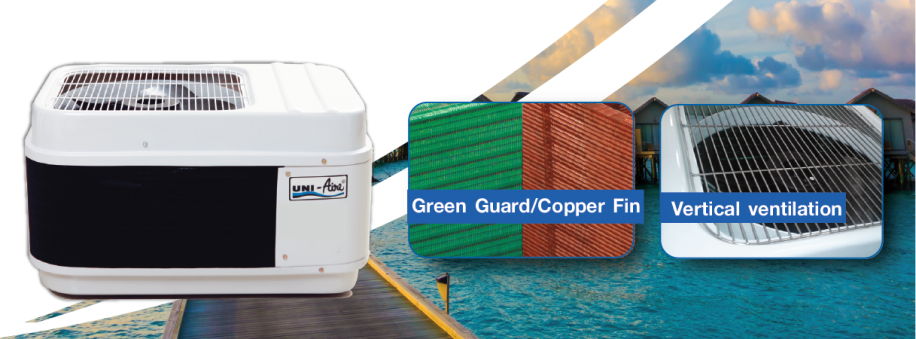

Casing made from fiberglass, corrosion free.Suitable for durable use especially for seaside or acidic environment. Optional Copper fin and green guard coated fin are available.
1. Auto Restart Air conditioning system turns on automatically after electricity supply returns from a power failure. the system also memorizes every setting before the outage.
2. 3 Minute Time Delay Prevent damage to the compressor fromvoltage sag or power failure.
