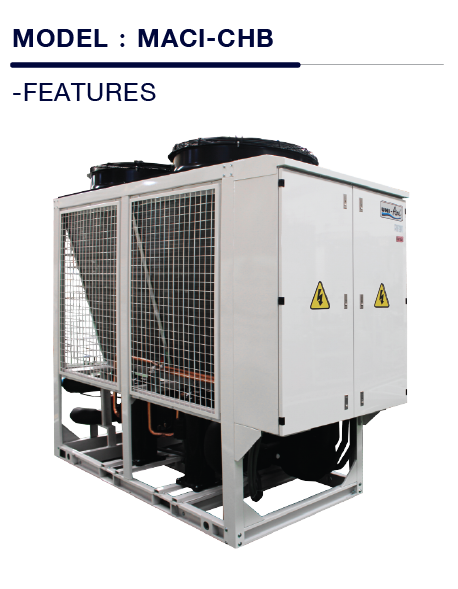

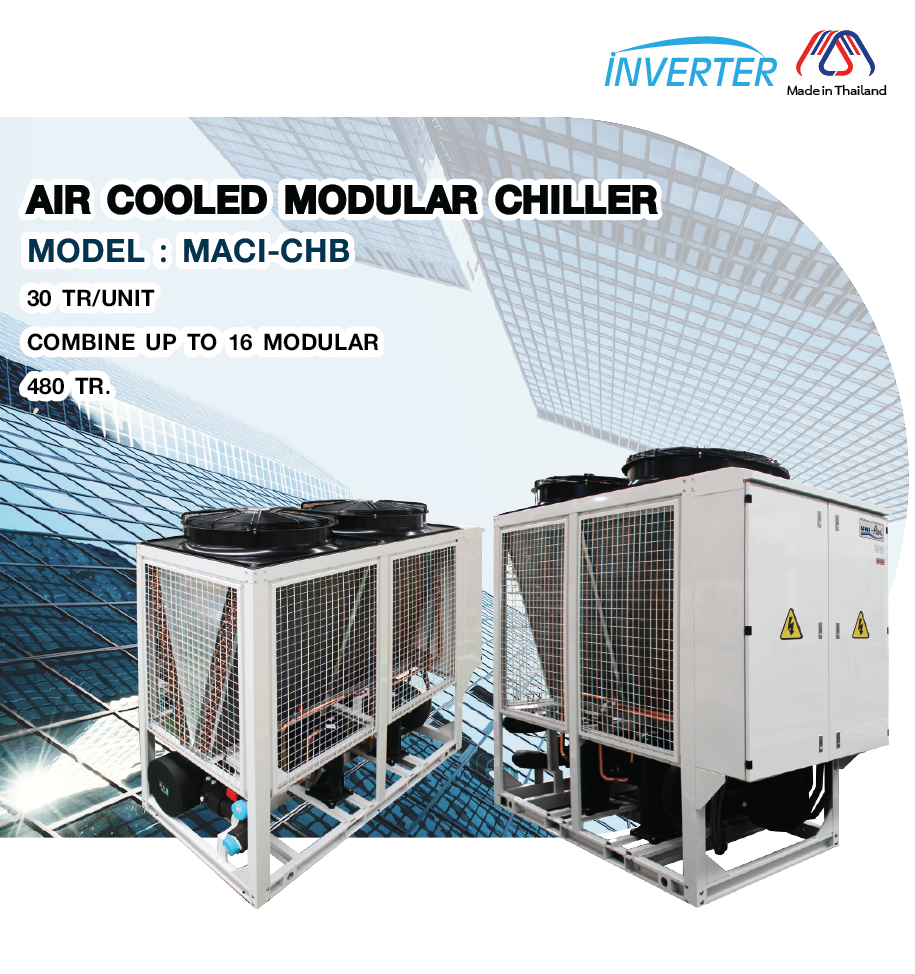

Features
• Inverter Chiller with IPLV 16.38
• Modules Available – 40HP

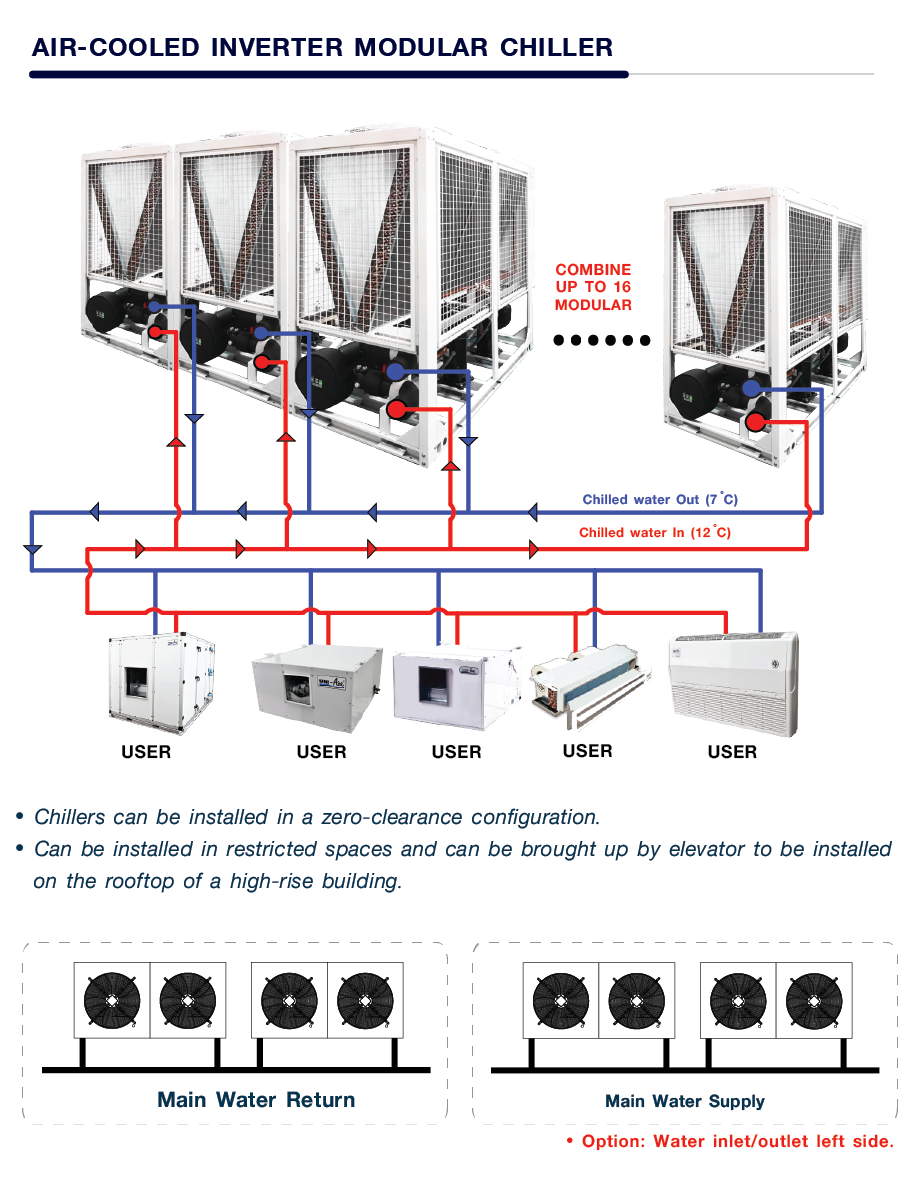

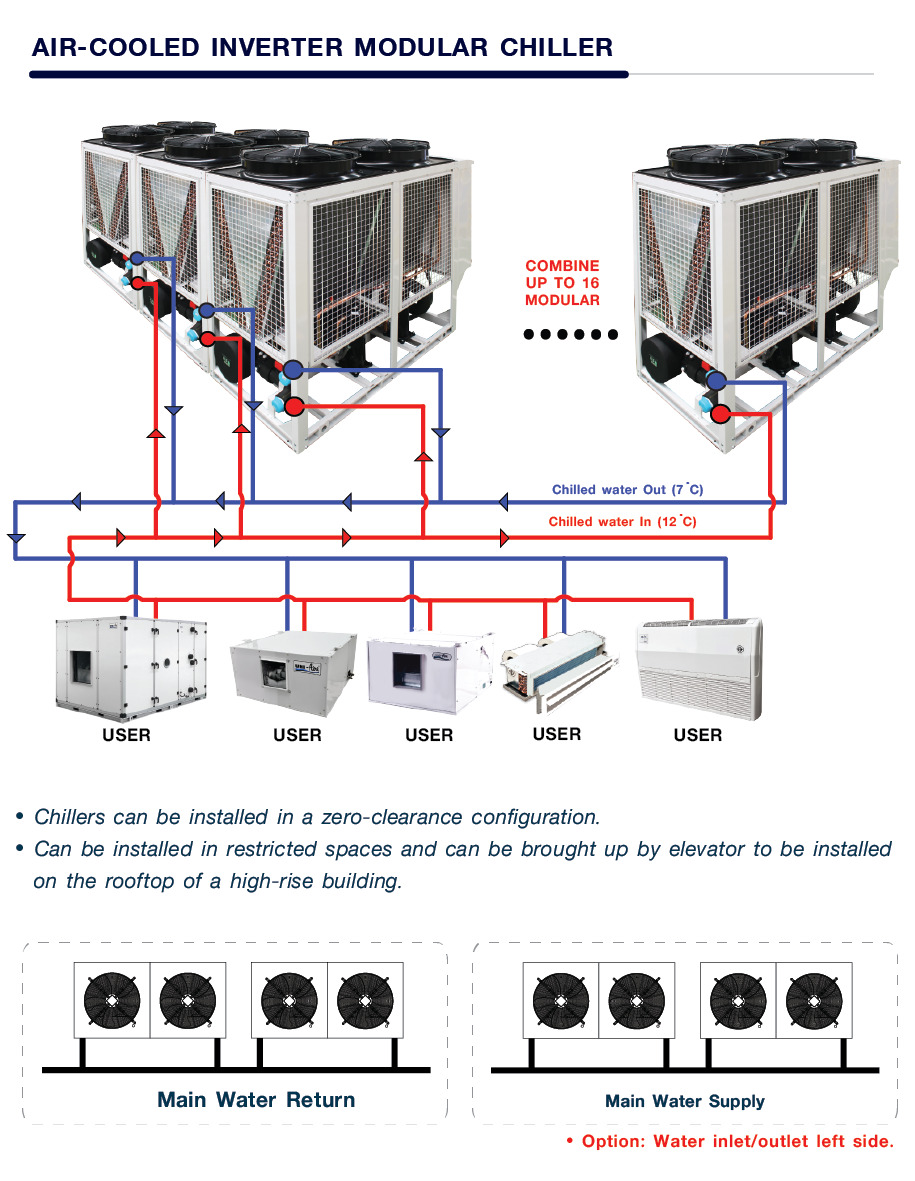

• 2 Operating Modes – Modular or Stand-alone
• Combine up to 16 modules

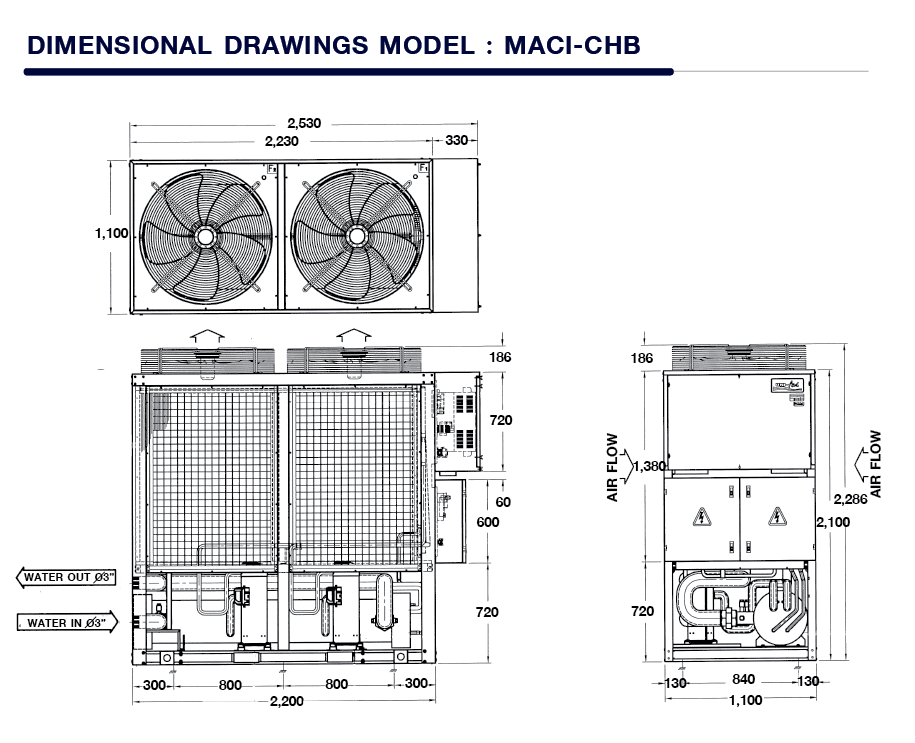

• Compact Design and Smaller Footprint

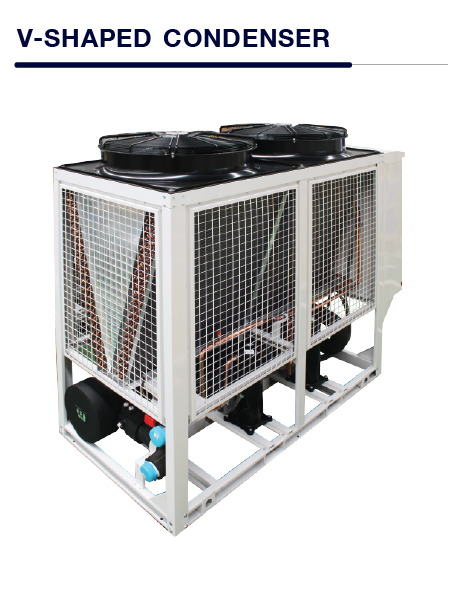

V-SHAPED CONDENSER
• The v-shaped condenser has used Inner grooved copper tube with aluminium louver fin, with heatexchange efficiency improved through full use of heat exchange area
• Condenser fan has used aluminium, fan blade provide large air volume, high durability and high air supply efficiency, with direct drive motor IP55

CONTROL SYSTEM
• Control type : Programmable logic control (PLC)
• HMI touch screen 7 inch
• Real time High – Low pressure and water temperature
• Freeze protection
• Control inverter via MODBUS Protocol
• Option : BMS/BAS

SHELL AND TUBE HEAT EXCHANGER
• High efficiency in performance, low water pressure drop and compact designed.
• Aluminium star rods fitted in copper tube, create turbulence refrigerant flow and cause higher heat transfer efficiency.

Compressor
• Scroll "Inverter" Compressor
• High-efficient, energy saving and
 operates stable.

Piping and Refrigerant Part
• Electronic expansion valve
• Water Flow Switch
• Filter drier
• Sight glass
• Service Valve
